Let's make a button!
Let's start with a printable template and a Folk program we want to turn into a button.
1. The printable template
This template makes 4 buttons on a standard 8.5“ x 11” piece of paper. Print it out, ideally on a piece of cardstock or tagboard (we like Neenah Bright White cardstock) so the button is able to hold its shape. If you're just trying this out to practice folding paper buttons it's okay to use regular printer paper, just know that it'll probably stop “springing” back to shape after ~a dozen uses.
Right click on this image to save it to you computer.
2. A Folk program to button-ize:
What is our button going to do? With Folk we can program our button to do anything we want but let's keep this one simple and just make our button write “Computer”
Go to your editor (either in your browser or via a physical keyboard editor on your Folk system) and write this 1-line program:
Wish $this is labelled Computer

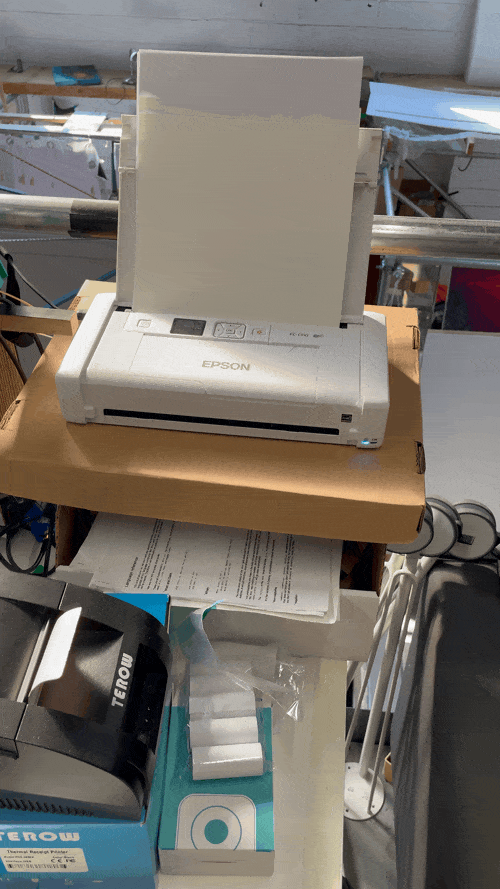

3. Printing
4. Folding and cutting
Let's fold and cut up the button like so:
1. Cut out one of the quadrants. 2. Starting at one of end of the paper fold the first solid black line into a valley fold so it forms a little “foot” for the button:
- Fold the inner two solid lines in a mountain fold
- Cut out the middle section bounded by the dashed line, this will be the cleared area where you cut AprilTag will go!
5. Taping
- Cut out the code. If it's one-or-two lines and can fit on the top of the button tape it there. Otherwise tape it to the top flap of the button.
- Cut out the AprilTag (make sure to preserve the program number and date data for future reference). Cut the AprilTag exactly in half with your scissors.
- Take the top half of your cut AprilTag, align its bottom edge with the bottom edge of the top of the cleared area, tape or glue it down to that position.
- Using your hand or a small object press the button down and keep it held down. This is important so you can accurately align the top-edge of the button to the top edge of the bottom half of the cleared area of your button. Once you've lined it up so your program executes tape or glue it to that position.
